Capital Tape has expanded its line of high-performance structural spacer tapes with two new Silicone-Compatible Structural Spacer Tapes, the CT1826 and CT3200.
Designed for demanding structural glazing, curtain wall, gasketing, cushioning, and spacing applications, these silicone-compatible tapes provide manufacturers, glazing contractors, fabricators, and engineers with alternatives to traditional high-density urethane gasketing.
Both CT1826 and CT3200 Silicone-Compatible Structural Spacer Tapes are designed for use with structural silicone and offer excellent adhesion to common glazing substrates, including glass, aluminum, stainless steel, painted metal, and vinyl.
What Are Silicone-Compatible Structural Spacer Tapes?
Silicone-Compatible Structural Spacer Tapes are specialized foam tapes designed to provide consistent spacing between components while remaining compatible with structural silicone systems.
In structural glazing and curtain wall applications, spacer tape can help establish a controlled gap between substrates while also providing cushioning, vibration dampening, and temporary positioning during assembly.
Because the spacer becomes part of a larger glazing assembly, compatibility with the structural silicone used in the application is an important consideration. CT1826 and CT3200 are specifically designed for applications where silicone compatibility and dependable spacer performance are required.

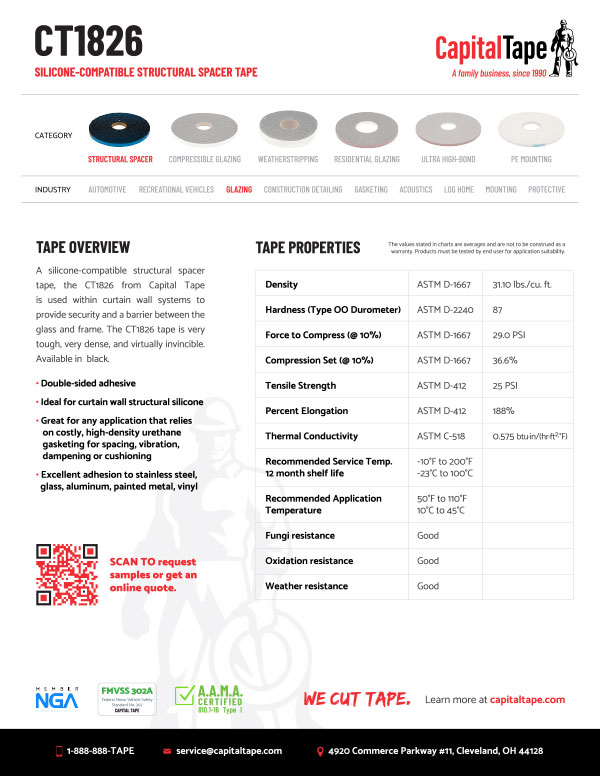

New CT1826 Structural Spacer Tape
CT1826 is a dense, durable structural spacer tape designed for demanding applications involving structural silicone.
Its double-sided adhesive construction provides strong adhesion to a variety of common substrates, including glass, aluminum, stainless steel, painted metal, and vinyl. CT1826 is particularly well suited for curtain wall structural silicone applications and projects where high-density urethane gasketing has traditionally been used for spacing, vibration dampening, or cushioning.
CT1826 Features
- Silicone-compatible construction
- Double-sided adhesive
- Designed for curtain wall structural silicone applications
- Excellent adhesion to glass, aluminum, stainless steel, painted metal, and vinyl
- High-density construction
- Good resistance to fungi, oxidation, and weather
- Recommended service temperature of -10°F to 200°F
- Available in black
- Standard widths of 1/4″, 3/8″, and 1/2″
- Custom widths available
CT1826 has a density of 31.1 lb/ft³ and a Type OO durometer hardness of 87. Its force to compress at 10% is 29 psi, with a compression set at 10% of 36.6%.
View the CT1826 Silicone-Compatible Structural Spacer Tape

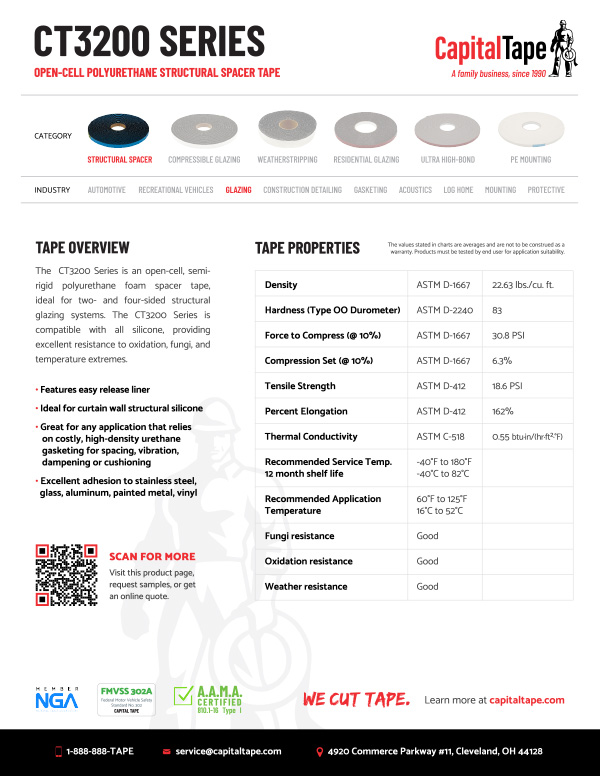

New CT3200 Structural Spacer Tape
CT3200 is an open-cell, semi-rigid polyurethane foam tape developed for structural silicone applications, including two- and four-sided structural glazing systems.
CT3200 is compatible with all tested silicone and features an easy-release liner for efficient application. Its polyurethane construction provides a combination of spacing, cushioning, and compression characteristics for structural glazing and related applications.
Like CT1826, CT3200 adheres well to common glazing substrates and can be used in applications where high-density urethane gasketing is traditionally used.
CT3200 Features
- Open-cell, semi-rigid polyurethane foam
- Compatible with all tested silicone
- Designed for two- and four-sided structural glazing systems
- Suitable for curtain wall structural silicone
- Easy-release liner
- Excellent adhesion to glass, aluminum, stainless steel, painted metal, and vinyl
- Good resistance to fungi, oxidation, and weather
- Recommended service temperature of -40°F to 180°F
- Available in black and gray
- Standard widths of 1/4″, 3/8″, and 1/2″
- Custom widths available
CT3200 has a density of 22.63 lb/ft³ and a Type OO durometer hardness of 83. Its force to compress at 10% is 30.8 psi, with a compression set at 10% of 6.3%.
View the CT3200 Silicone-Compatible Structural Spacer Tape
CT1826 vs. CT3200 Silicone-Compatible Structural Spacer Tape
While both products are designed for silicone-compatible structural spacer applications, their constructions and performance characteristics differ.
| Feature | CT1826 | CT3200 |
|---|---|---|
| Construction | Dense foam | Open-cell, semi-rigid polyurethane |
| Silicone compatibility | Yes | Yes |
| Typical application | Curtain wall structural silicone | Two- and four-sided structural glazing |
| Colors | Black | Black and gray |
| Density | 31.1 lb/ft³ | 22.63 lb/ft³ |
| Durometer | 87 Type OO | 83 Type OO |
| Service temperature | -10°F to 200°F | -40°F to 180°F |
| Standard widths | 1/4″, 3/8″, 1/2″ | 1/4″, 3/8″, 1/2″ |
| Custom widths | Available | Available |
The appropriate structural spacer tape depends on the requirements of the specific glazing or gasketing application. Capital Tape can help identify the appropriate construction, thickness, width, and configuration for your project.
Download our Silicone-Compatible Structural Spacer Tape Data Sheets
Applications for Silicone-Compatible Structural Spacer Tape
These new Silicone-Compatible Structural Spacer Tapes are designed for a wide range of applications where controlled spacing and silicone compatibility are important.
Potential applications include:
Structural Glazing — Structural glazing systems require careful consideration of the materials used throughout the assembly. Silicone-compatible spacer tape can provide consistent spacing and cushioning while working alongside structural silicone.
Curtain Wall Systems — CT1826 and CT3200 are suited for curtain wall applications involving structural silicone, providing an alternative to traditional gasketing materials for appropriate applications.
Two- and Four-Sided Structural Glazing — CT3200 is designed for two- and four-sided structural glazing systems and can provide spacing and cushioning within these assemblies.
Gasketing and Cushioning — Both tapes can be considered for applications where high-density urethane gasketing is traditionally used for spacing, vibration dampening, or cushioning.
Glass-to-Frame Applications — The adhesive properties of these structural spacer tapes make them suitable for bonding and spacing applications involving common substrates such as glass, aluminum, stainless steel, painted metal, and vinyl.
Custom Structural Spacer Tape from Capital Tape
Standard-size Silicone-Compatible Structural Spacer Tapes are not always the right fit for a specific assembly. Capital Tape offers custom-width converting to help customers obtain the dimensions required for their application.
CT1826 and CT3200 are available in standard 1/4″, 3/8″, and 1/2″ widths, with custom widths also available.
Capital Tape can supply production-length rolls as well as samples for testing and mock-up applications.
For standard products, lead times are typically 1–2 business days. Non-standard and custom-cut requests generally average 3–5 business days, depending on product availability and order requirements.
Why Choose Capital Tape for Structural Spacer Tape?
Capital Tape specializes in converting and supplying industrial tapes for demanding applications. In addition to structural spacer tapes, the company offers a broad range of industrial adhesive tapes that can be slit, laminated, coated, die-cut, and custom converted to meet application requirements.
When an off-the-shelf tape does not meet your specifications, Capital Tape can help identify a suitable material and provide the width, roll format, or custom configuration your application requires.
Need help selecting a silicone-compatible structural spacer tape? Contact Capital Tape to discuss your application or request a sample of CT1826 or CT3200.
Frequently Asked Questions About Silicone-Compatible Structural Spacer Tapes
What is silicone-compatible structural spacer tape?
Silicone-compatible structural spacer tape is a specialized foam tape designed to provide controlled spacing, cushioning, or gasketing in applications where structural silicone is also used. The tape is formulated and tested for compatibility with applicable silicone systems.
What is the difference between CT1826 and CT3200?
CT1826 is a denser structural spacer tape with a density of 31.1 lb/ft³, while CT3200 is an open-cell, semi-rigid polyurethane tape with a density of 22.63 lb/ft³. CT3200 is specifically suited for two- and four-sided structural glazing systems, while CT1826 is particularly suited for curtain wall structural silicone applications.
Are CT1826 and CT3200 compatible with structural silicone?
Yes. Both CT1826 and CT3200 are designed for applications involving structural silicone. CT3200 is compatible with all tested silicone, while application-specific compatibility should always be confirmed with the silicone manufacturer and based on the requirements of the finished assembly.
What substrates can these structural spacer tapes adhere to?
Both products offer excellent adhesion to common substrates including glass, aluminum, stainless steel, painted metal, and vinyl.
What are structural spacer tapes used for?
Structural spacer tapes can be used for spacing, cushioning, vibration dampening, gasketing, and temporary positioning in applications such as structural glazing and curtain wall systems.
Can Capital Tape provide custom-width structural spacer tape?
Yes. CT1826 and CT3200 are available in standard widths of 1/4″, 3/8″, and 1/2″, with custom widths available for application-specific requirements.
What temperatures can CT1826 withstand?
CT1826 has a recommended service temperature range of -10°F to 200°F.
What temperatures can CT3200 withstand?
CT3200 has a recommended service temperature range of -40°F to 180°F.
Can I get samples of CT1826 or CT3200?
Yes. Capital Tape offers samples for testing and mock-up applications. Contact Capital Tape to request a sample and discuss your application requirements.
Find the Right Silicone-Compatible Structural Spacer Tape
Whether you need a dense spacer for a curtain wall application or an open-cell polyurethane spacer for a structural glazing system, Capital Tape’s new CT1826 and CT3200 Silicone-Compatible Structural Spacer Tapes provide additional options for demanding applications.
