New product release: The hard-to-find VK Series Gray Structural Glazing Tape, ideal for curtain wall systems, is now available in custom cut sizes from Capital Tape Company.
VK Series Overview
VK Series Tape is available in black and now in gray, as seen below. The VK Series is used primarily within curtain wall systems to provide security and a virtually impenetrable barrier between the glass and frame. This remarkably versatile tape is made in the USA and is available from Capital Tape in standard and non-standard widths.

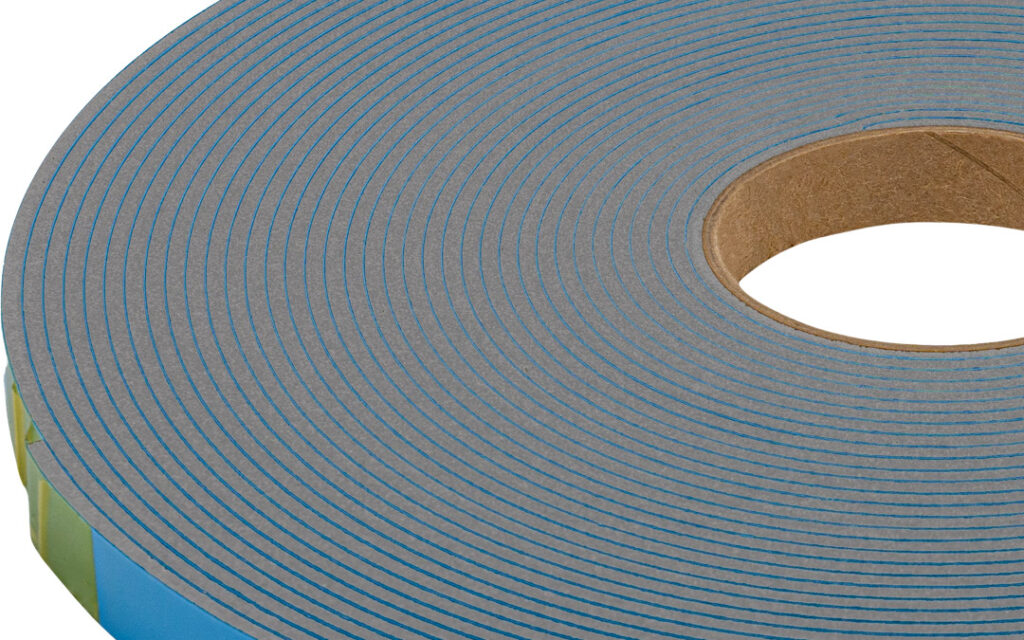

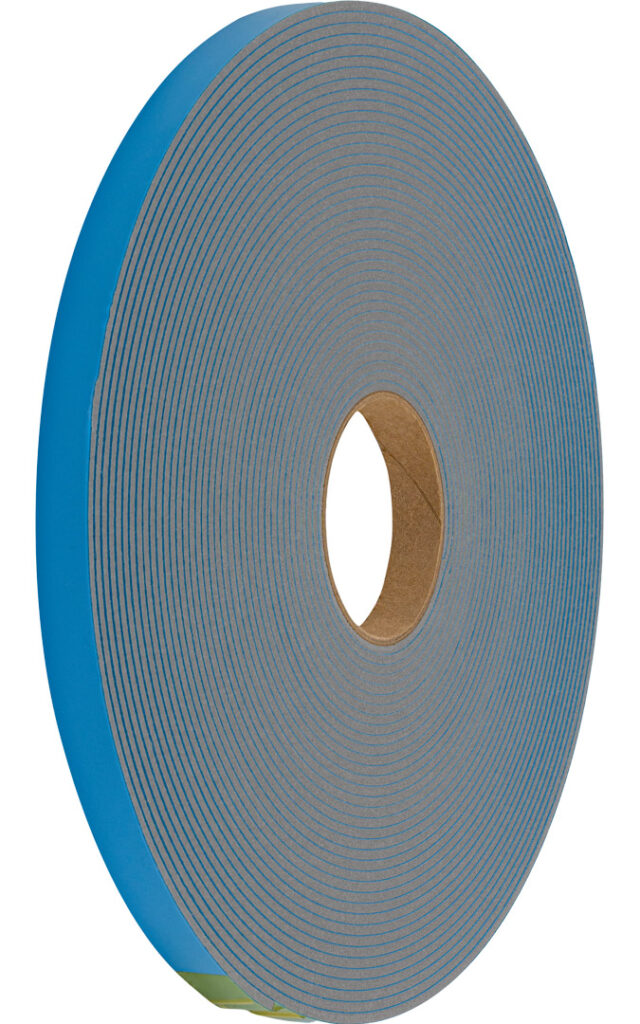

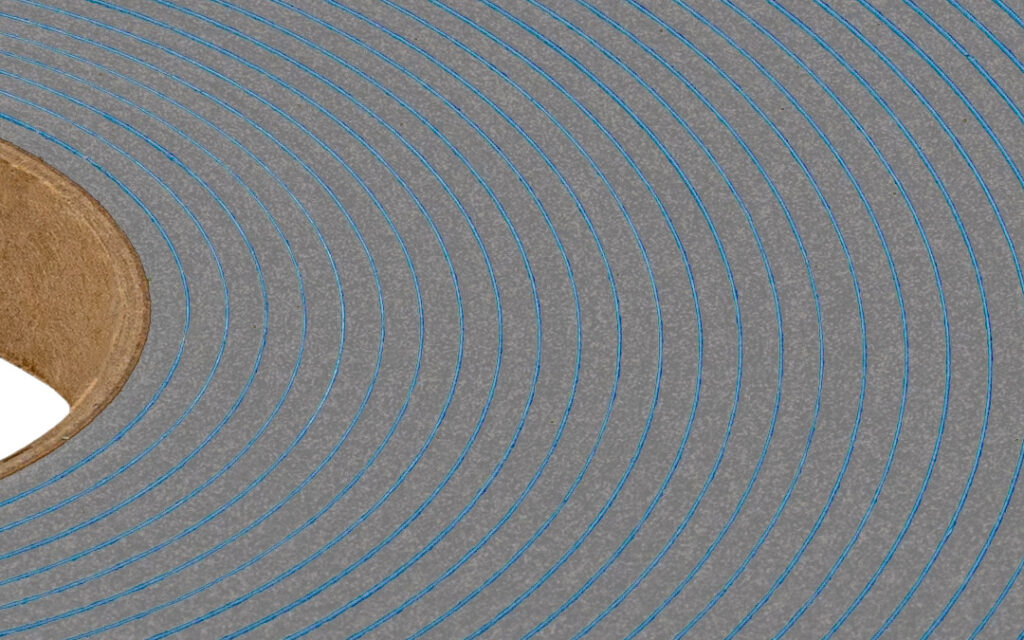

The VK Gray Structural Glazing Tape
The 1/4-inch thick, double-coated/double-sided VK Series gray structural glazing tape is a closed-cell PVC foam tape that is designed specifically for professional-grade structural glazing.
Extremely tough, dense, and virtually invincible, this tape’s low thermal conductivity significantly reduces heat transfer and prohibits water seepage and condensation on windows, doors, and metal systems. The VK gray glazing tape offers excellent resistance to weather, fungi, water, and oxidation. It’s the perfect choice for:
- Curtain wall structural silicone applications.
- Any application that relies on costly, high-density urethane gasketing for spacing, vibration, dampening or cushioning.
- Excellent adhesion to stainless steel, glass, aluminum, painted metal and vinyl.
Curtain Wall Structural Glazing
Curtain walls are typically constructed from aluminum or steel frames with glass panel infills and serve as an outer layer of a building to protect against external elements, though they do not bear any structural weight. Over time, the curtain wall industry has evolved with innovative designs and shifting environmental standards, resulting in a broad range of available products. For architectural glazing applications such as storefront glazing, Capital Tape provides a complete line of silicone-compatible glazing tape products, along with light-density PVC foams ideal for hollow metal and storefront glazing and for sealing gaps. Capital Tape’s compressible glazing tapes deliver the reliable support required for a variety of unique glazing systems.

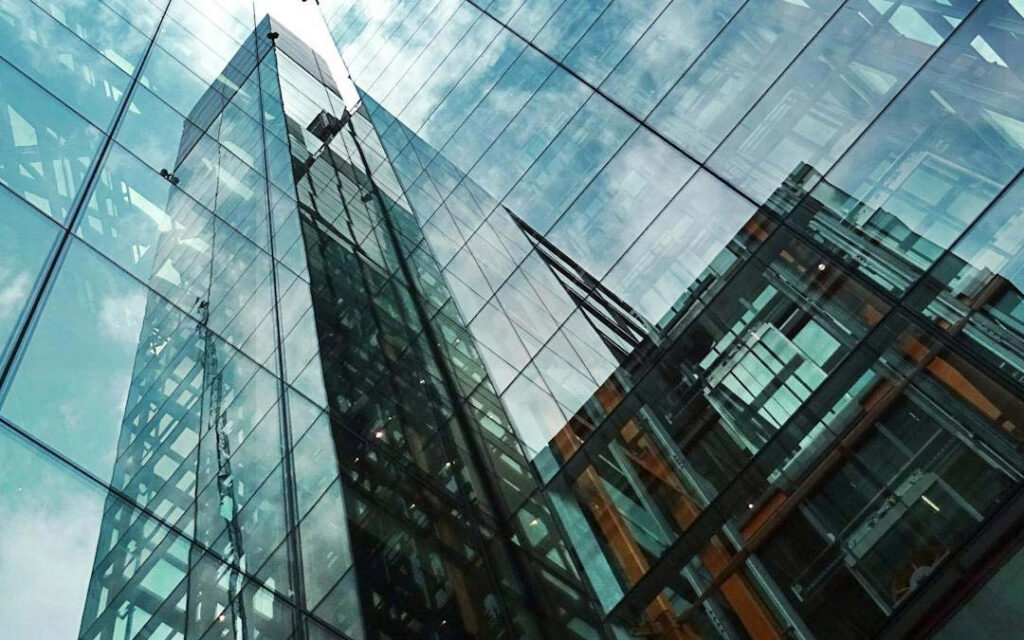

An example of a glass curtain wall:

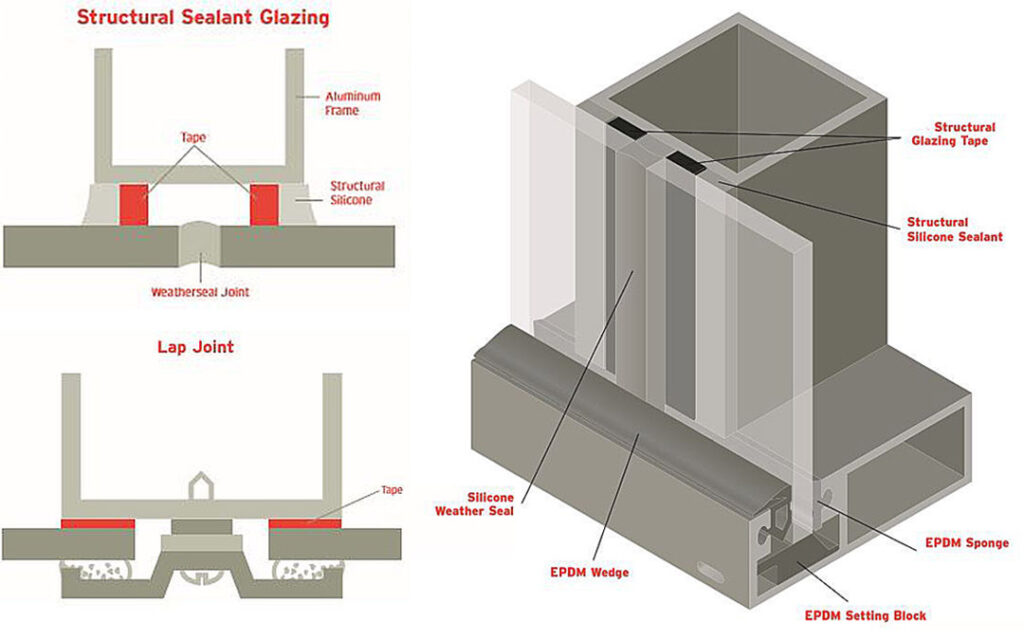

Structural Sealant Glazing
Capital Tape’s industry-leading VK gray structural glazing tape is the perfect adhesive for curtain wall silicone systems and other applications that rely on otherwise expensive urethane gasketing for spacing, vibration, or cushioning. The VK Series gray tape provides excellent adhesion to stainless steel, glass, aluminum, painted metal, and vinyl, and was developed for customers looking for a domestic product that delivers a cost-effective, professional alternative for their structural glazing needs.
VK Series Gray Structural Tape Properties
| VK Series Density | 19 lbs. | |
| Hardness (Shore A) | ASTM D-2240 | 65 |
| Force to Compress (@ 10%) | ASTM D-1667 | 15 psi |
| Compression Set (@ 10%) | ASTM D-1667 | 2.5% |
| Water absorption (% by volume) | CTP* | 2.2 |
| Dynamic Shear | CTP* | 60 psi |
| Dynamic Tensile | CTP* | 35 psi |
| Tensile Strength | ASTM D-412 | 85 psi |
| Percent Elongation | ASTM D-412 | 70% |
| Thermal Conductivity | ASTM C-518 | 0.30 |
| Recommended Service Temperature | -10°F to 200°F-23°C to 100°C | |
| Recommended Application Temperature | 50°F to 110°F 10°C to 45°C | |
| Fungi resistance | Good | |
| Oxidation resistance | Good | |
| Weather resistance | Good |
*CTP – Capital Tape Test Procedure
These are approximate values and do not constitute warranty that products are fit for a particular purpose. The customer is advised to fully determine the suitability of these products for his intended use. These products conform to published specifications, if any, and the products are merchantable. Test data contained herein is believed to be reliable but unless specifically stated are not to be taken as specifications for products.
The Silicon-Compatible Gray VK Series Glazing Tape is Now Available
