Compressible Glazing Tape
V1526
The V1526 Compressible Glazing Tape from Capital Tape is an aggressive, pressure-sensitive tape with adhesive on both sides of a medium-density, closed-cell PVC foam.
V1526 Tape from Capital Tape is A.A.M.A. Certified 810.1-16 Type 1
Capital Tape Compressible Glazing Tape
Closed-Cell PVC Foam Glazing Tape
V1526 Series Medium Density PVC Foam Tape with Plastic Liner
The chosen tape for storefront and architectural glazing, these tapes provide an excellent combination of light density flexibility with heavy density strength. Products feature an easy release film liner. Tested and approved to AAMA 810.1-92 expanded cellular glazing tapes; these foams are silicone compatible.
- Excellent in glazing applications
- Maintains a seal in high movement joints
- Effectively functions as a thermal break and insulator
- Excellent resistance to fungi, oxidation, and weather.
- Fire rating: Meets or exceeds FMVSS 302A. Self-Extinguishing/No Burn Rate

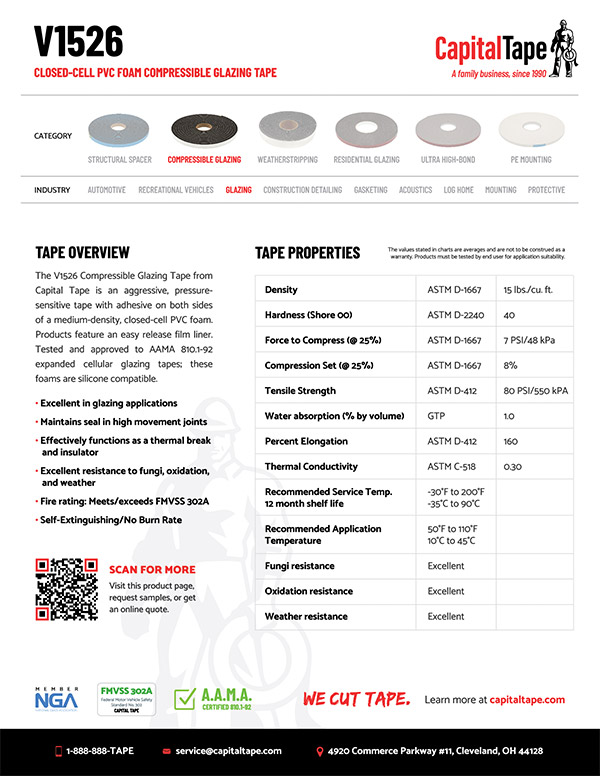

Download the V1526 Series PVC Foam Glazing Tape data sheet (PDF)
| DENSITY | ASTM D-1667 | 15 lbs./cu. ft. |
| HARDNESS (Shore 00) | ASTM D-2240 | 40 |
| Force to Compress (@ 25%) | ASTM D-1667 | 7 psi 48 kPa |
| Compression Set 25% (% loss from original height) | ASTM D-1667 | 8% |
| Water absorption (% by volume) | GTP | 1.0 |
| Tensile Strength | ASTM D-412 | 80 psi 550 kPa |
| Percent Elongation | ASTM D-412 | 160 |
| Thermal Conductivity (K factor) (btu-in.)/(hr.,sq.ft.)(F°) w.mK | ASTM C-518 | 0.30 |
| Recommended Service Temperature
12 month shelf life |
-30°F to 200°F
-35°C to 90°C |
|
| Recommended Application Temperature | 50°F to 110°F 10°C to 45°C |
|
| Fungi resistance |
Excellent | |
| Oxidation resistance | Excellent | |
| Weather resistance | Excellent |
These are approximate values and do not constitute warranty that products are fit for a particular purpose. The customer is advised to fully determine the suitability of these products for his intended use. These products conform to published specifications, if any, and the products are merchantable. Test data contained herein is believed to be reliable but unless specifically stated are not to be taken as specifications for products.
Get a Fast V1526 Online Quote
V1526 Compressible Glazing Tape
(Size/color minimums may apply)
