Polyethylene Mounting Tape

9230EZ

The 9230EZ Polyethylene Mounting Tape from Capital Tape is a high-performance, high-resistance tape that is ideal for outdoor and automotive uses.

Weather Resistant Mounting Tape
9230EZ Performance Mounting Tape

High performing solvent-based acrylic adhesive system coated on each side of a black foam carrier and protected by an “easy release” green PE liner. This product has very high shear strength and is highly resistant to solvents, chemicals, UV and heat. It also exhibits weather and age resistance making it suitable for outdoor applications.

  • Perfect for mounting of mirror tiles and labels.
  • Ideal for aftermarket automotive applications like car side moldings.
  • UV and heat resistant.
  • Excellent for outdoor applications.
  • Shelf life of up to 2 years.

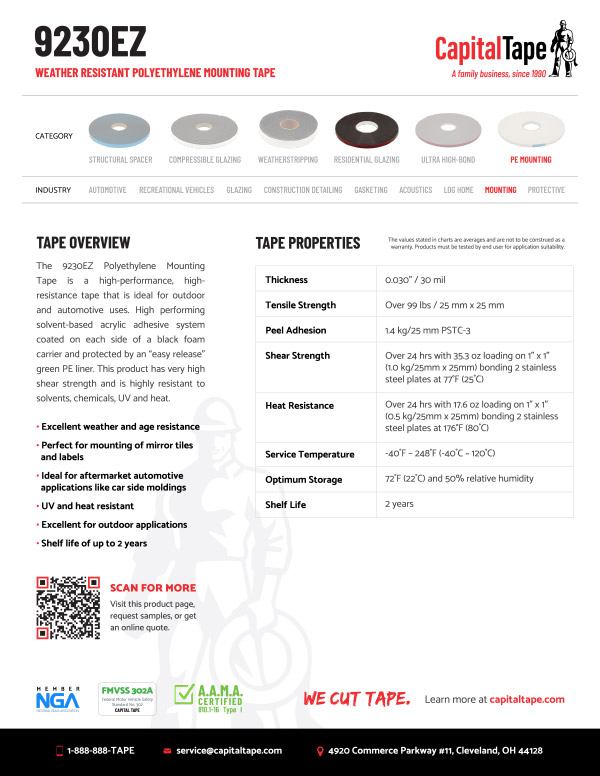

Download the 9230EZ Performance Mounting Tape data sheet (PDF)

Thickness

0.030”
30 mil

Tensile Strength over 99 lbs / 25 mm x 25 mm
Peel Adhesion

1.4 kg/25 mm PSTC-3

Shear Strength

Over 24 hrs with 35.3 oz loading on 1″ x 1″
(1.0 kg/25mm x 25mm)
bonding 2 stainless steel plates at 77°F (25˚C)

Heat Resistance

Over 24 hrs with 17.6 oz loading on 1″ x 1″
(0.5 kg/25mm x 25mm)
bonding 2 stainless steel plates at 176°F (80˚C)

Service Temperature Range -40˚F – 248˚F (-40˚C ~ 120˚C)
Shelf Life 2 years
Optimum Storage Environment

72˚F (22˚C) and 50% relative humidity

These are approximate values and do not constitute a warranty. It is the customer’s responsibility to determine these products fitness for use in the intended end use application. Test data contained herein is believed to be reliable and it is not stated as, or to be taken as, a specification of these products.
