Low-Density & Weatherstripping Tape

V810

The V810 Low-Density & Weatherstripping Tape from Capital Tape is an automotive-grade tape used when air- and moisture-tight seals on irregular surfaces are critical. Easy to compress, nearly impossible to destroy.

Closed-Cell PVC Foam Tape
V810 Light Density PVC Foam Tape

General purpose gray foam tape manufactured for use in applications requirement positive seals on irregular surfaces or when flex and conformability to seal tight radius curves are critical considerations.

  • Easy to compress and conformable but still strong and resilient.
  • V810 is a self-extinguishing formulation and meets FMVS 302A.
  • Ultra flexible to seal tight radius or irregular surfaces.

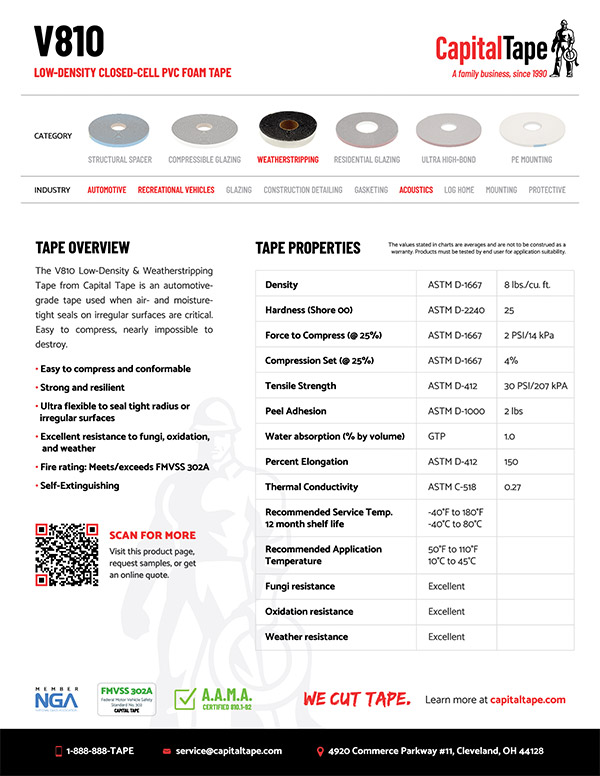

Download the V810 Light Density PVC Foam Tape data sheet (PDF)

DENSITY ASTM D-1667 8 lbs./cu. ft.
HARDNESS (Shore 00) ASTM D-2240 25
Force to Compress (@ 25%) ASTM D-1667 2 psi
14 kPa
Compression Set 25% (% loss from original height) ASTM D-1667 4%
Peel Adhesion ASTM D-1000 2 lbs.
Water absorption (% by volume) GTP 1.0
Tensile Strength ASTM D-412 30 psi
207 kPa
Percent Elongation ASTM D-412 150
Thermal Conductivity (K factor) (btu-in.)/(hr.,sq.ft.)(F°) w.mK ASTM C-518 0.27

Recommended Service Temperature

12 month shelf life

-40°F to 180°F

-40°C to 80°C

Recommended Application Temperature 50°F to 110°F
10°C to 45°C
Fungi resistance
Excellent
Oxidation resistance Excellent
Weather resistance Excellent

The values stated in charts are averages and are not to be construed as a warranty. Products must be tested by the end user for suitability in their applications.
