Ultra-High Bond Tape
4400 Series
The 4400 Series is a translucent, structural-grade, ultra-high bond acrylic tape designed to provide superior bond between a wide variety of surfaces.
Ultra-High Bond Tape (UHB)
4400 Series Solid Acrylic Foam
Translucent, (white liner) structural grade solid acrylic tape designed to provide superior bond between a wide variety of surfaces. The tape combines a high tack acrylic adhesive on both surfaces with a core of solid acrylic polymer. The tape exhibits excellent performance under a wide range of environmental conditions including exposure to fuels and chemicals.
- Long life performance and high bond strength.
- Solid acrylic core for superior strength.
- Flexible & compressible, conforms to intricate shapes.
- Will not absorb moisture.
- Maintains adhesion at sub-zero temperatures.
- Instant pressure sensitive bonding.
- Will not harden or become brittle with age.
- Excellent weathering properties; non-staining.
- Isolates and dampens vibration and shock.

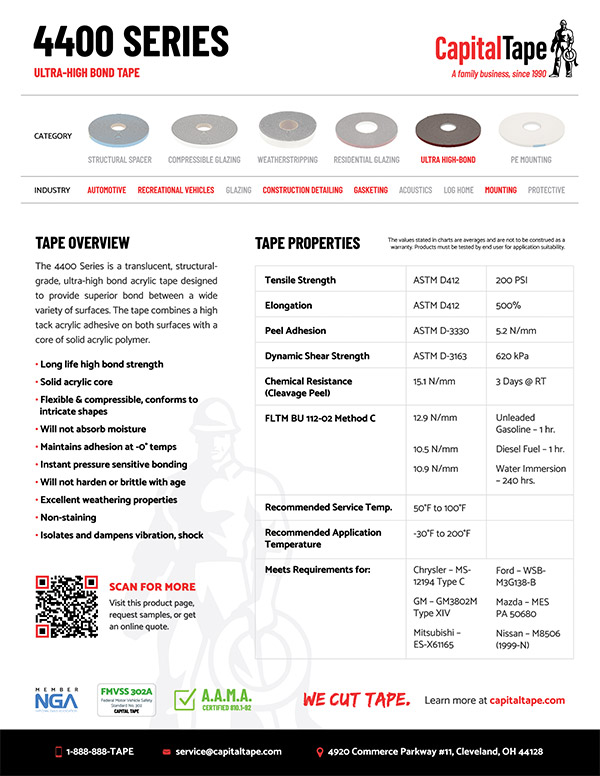

Download the 4400 Series Solid Acrylic Foam data sheet (PDF)
Looking for a specific 4400 series tape data sheet?
Find it here for download
| Thickness |
0.025” |
|
| Tensile Strength |
ASTM D412 Die C |
200 psi |
| Elongation | ASTM D412 Die C | 500% |
| Peel Adhesion |
ASTM D3330 |
5.2 N/mm |
| Dynamic Shear Strength |
ASTM D3163 |
620 kPa |
| Chemical Resistance (Cleavage Peel) |
15.1 N/mm |
3 Days @ RT |
| FLTM BU 112-02 Method C |
12.9 N/mm |
Unleaded Gasoline – 1 hr. |
|
10.5 N/mm |
Diesel Fuel – 1 hr. |
|
|
10.9 N/mm |
Water Immersion – 240 hrs. |
|
| Installation Service Temperature Range | 50°F to 100°F | |
| Service Temperature Range |
-30°F to 200°F |
|
| Meets Requirements of |
Chrysler – MS-12194 Type C |
Ford – WSB-M3G138-B |
|
GM – GM3802M Type XIV |
Mazda – MES PA 50680 |
|
|
Mitsubishi – ES-X61165 |
Nissan – M8506 (1999-N) |
These are approximate values and do not constitute warranty that products are fit for a particular purpose. The customer is advised to fully determine the suitability of these products for his intended use. These products conform to published specifications, if any, and the products are merchantable. Test data contained herein is believed to be reliable but unless specifically stated are not to be taken as specifications for products.
Get a Fast 4400 Series Tape Online Quote
4400 Series Ultra-High Bond Tape
(Size/color minimums may apply)
