Residential Glazing Tape

5200 Series

The 5200 Series from Capital Tape is the chosen Residential Glazing Tape for long-term, high bonding performance in both indoor and outdoor environments.

Z

A.A.M.A. Certified 810.1-92

Capital Tape Residential Glazing Tape

Polyethylene Acrylic Adhesive Tape
5200 Series High Tack Residential Glazing Tape

Available in white and black foam.

Available in two thicknesses and cut to order by Capital Tape, the 5100 Series residential glazing tape is a flexible, polyethylene foam tape, coated on both sides with a high-tack, acrylic adhesive that is protected by a plastic liner.

The Capital Tape 5200 Series is ideal for long-term bonding performance in indoor and outdoor applications.

  • Approved under AAMA 810.1-92.
  • Exceptional Shear & Tensile Strength.

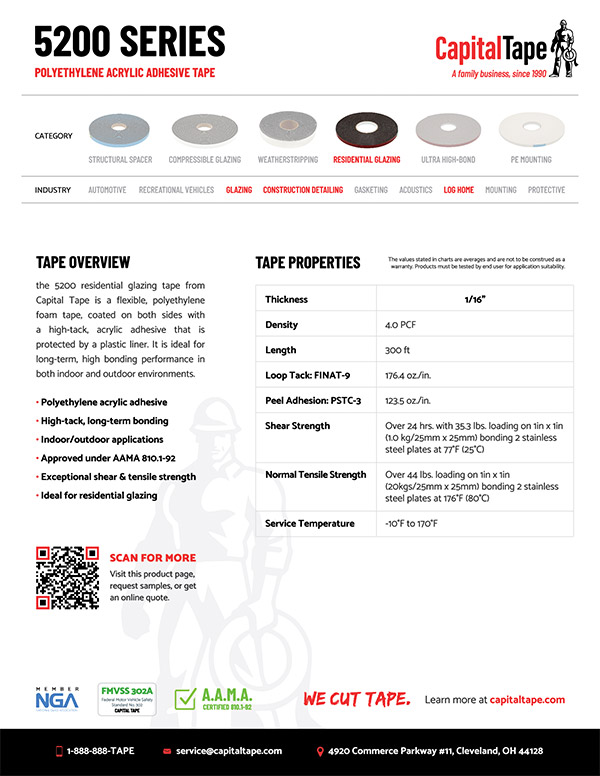

Download the 5200 Series Residential Glazing Tape data sheet (PDF)

Thickness 1/16″
Density 4 PCF
Length 300′
Loop Tack: FINAT-9 176.4 oz./in.
Peal Adhesion: PSTC-3 123.5 oz./in.
Shear Strength Over 24 hrs. with 35.3 lbs. loading on 1″ x 1″ (1.0 kg/25mm x 25mm) bonding 2 stainless steel plates at 77°F (25°C)
Normal Tensile Strength Over 44 lbs. loading on 1″ x 1″ (20kgs/25mm x 25mm) bonding 2 stainless steel plates at 176°F (80°C)
These are approximate values and do not constitute a warranty. It is the customer’s responsibility to determine these products’ fitness for his intended use. These products conform to published specifications, if any, and the products are merchantable. Test data contained herein is believed to be reliable but unless specifically stated are not to be taken as specifications for products.
