Ultra-High Bond Tape
4800 Series
The 4800 Series Ultra-High Bond tape was developed to provide superior performance to LSE (Low Surface Energy) surfaces like PP, PE and powder-coated materials, without the need for primers.
Ultra-High Bond Tape
4800 Series Ultra-High Bond Solid Acrylic Core Tape
Ideal for trailer manufacturers and the automotive industry, the 4800 Series UHB tape provides superior performance for low surface energy surface adhesion and eliminates the need for primers. After just 20 minutes of being applied to a clean LSE surface, expect perfect adhesion performance on hard to stick surfaces. Available in black and grey.
-
Ideal for trailer manufacturers
-
Eliminates need for primers used in trailer construction
-
The ideal substitute for trailer rivets
-
Long life high bond strength
-
Solid acrylic core
-
Will not absorb moisture
-
Excellent resistance to UV, solvents
-
Will not harden or brittle with age
-
Flexible & conformable to any shape
-
Meets Requirements for Ford WSB-M3G138-B, Mazda MES, PA 50680, Nissan M8506 (1999-N)

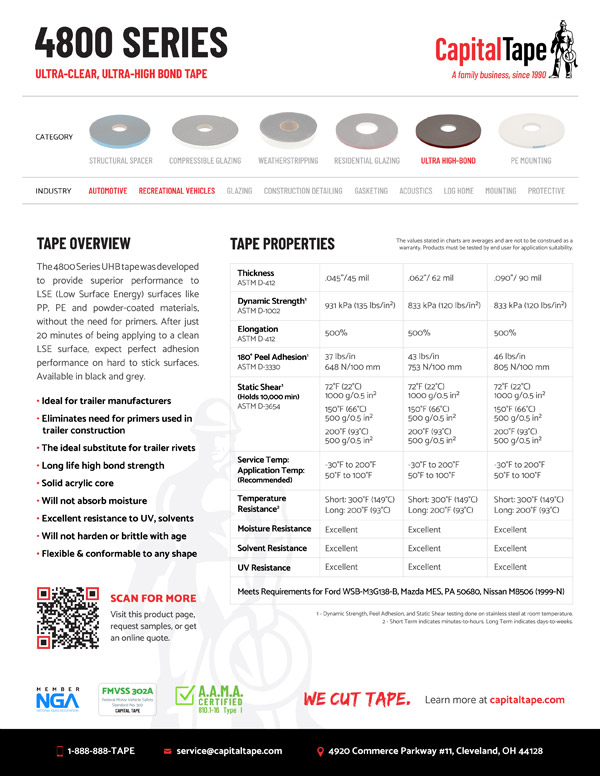

Download the 4800 Series Solid Acrylic Foam data sheet (PDF)
Looking for a specific 4800 series tape data sheet?
Find it here for download
|
Thickness |
.045”/45 mil |
.062”/ 62 mil |
.090”/ 90 mil |
|
Dynamic Strength1 |
931 kPa (135 lbs/in²) |
833 kPa (120 lbs/in²) |
833 kPa (120 lbs/in²) |
|
Elongation |
500% |
500% |
500% |
|
180° Peel Adhesion1 |
37 lbs/in |
43 lbs/in |
46 lbs/in |
|
Static Shear1 |
72°F (22°C) 150°F (66°C) 200°F (93°C) |
72°F (22°C) 150°F (66°C) 200°F (93°C) |
72°F (22°C) 150°F (66°C) 200°F (93°C) |
|
Recommended Service Temperature |
-30°F to 200°F |
-30°F to 200°F |
-30°F to 200°F |
|
Recommended Application Temperature |
50°F to 100°F |
50°F to 100°F |
50°F to 100°F |
|
Temperature Resistance2 |
Short: 300°F (149°C) |
Short: 300°F (149°C) Long: 200°F (93°C) |
Short: 300°F (149°C) Long: 200°F (93°C) |
|
Moisture Resistance |
Excellent |
Excellent |
Excellent |
|
Solvent Resistance |
Excellent |
Excellent |
Excellent |
|
UV Resistance |
Excellent |
Excellent |
Excellent |
1 – Dynamic Strength, Peel Adhesion, and Static Shear testing done on stainless steel at room temperature.
2 – Short Term indicates minutes-to-hours. Long Term indicates days-to-weeks.
These are approximate values and do not constitute warranty that products are fit for a particular purpose. The customer is advised to fully determine the suitability of these products for his intended use. These products conform to published specifications, if any, and the products are merchantable. Test data contained herein is believed to be reliable but unless specifically stated are not to be taken as specifications for products.
Get a Fast 4800 Series Tape Online Quote
4800 Series Ultra-High Bond Tape
(Size/color minimums may apply)
