Medium-Density Swirl-Free Tape
CT1010 Tape
The CT1010 tape is a medium-density PVC foam tape that is swirl-free, meaning it won’t twist, distort, or warp when fasteners are driven into it.
Closed-Cell PVC Foam Tape
CT1010 Tape: Medium Density Swirl-Free PVC Foam Tape
The CT1010 tape is made of a special foam that allows it to be completely distortion- or swirl-free and it will not tear when drilled into or when mechanical fasteners like screws and rivets are driven through it. The medium-density PVC foam cells compress and conform to the fastener, keeping a tight seal.
- Swirl-free/warp-free: It won’t crack, twist, or distort when penetrated by fasteners
- 30% compression, single side adhesive
- Medium force compression, positive seal
- Flame resistant under FMVSS 302
- Seals out light, water, and dust, ideal for mechanical and electronic assemblies
- Allows for easy die-cutting
- Conforms to curved/irregular surfaces
- Paper liner with easy removal prevents install stretching
- Ideal applications: Recreational and off-road vehicles, vehicle overlap and truck roofline seals, die-cut gaskets, modular walls, railroad cars, marine, outdoor lighting fixtures and metal farm buildings, corrugated panel seals, lap joints

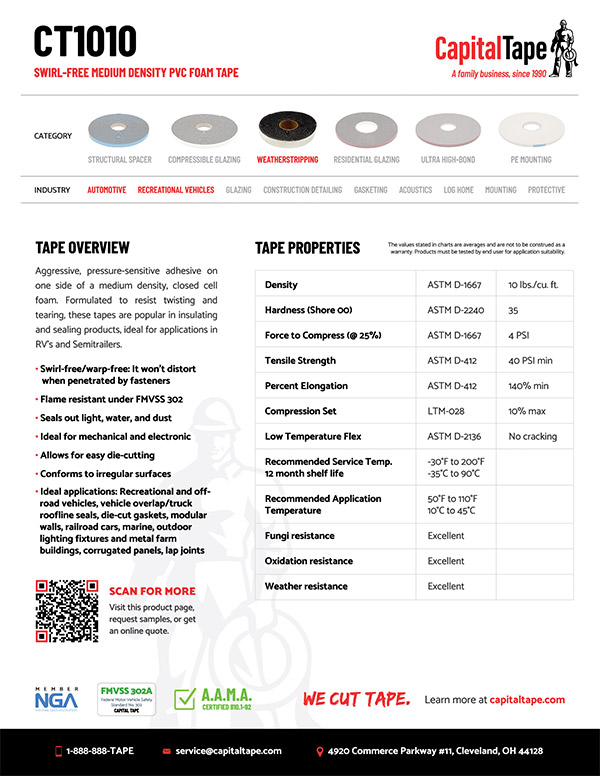

Download the Light Density PVC Foam CT1010 Tape data sheet (PDF)
| DENSITY | ASTM D-1667 | 9-10 lbs./cu. ft. |
| HARDNESS (Shore 00) | ASTM D-2240 | 35 |
| Compression Force (@ 25%) | ASTM D-1667 | 4 psi |
| Compression Set | LTM-028 | 10% max |
| Tensile Strength | ASTM D-412 | 40 psi min |
| Percent Elongation | ASTM D-412 | 140% min |
| Low Temperature Flex | ASTM D-2136 | 10% max |
|
Recommended Service Temperature 12 month shelf life |
-30°F to 200°F -35°C to 90°C |
|
| Recommended Application Temperature | 50°F to 110°F 10°C to 45°C |
|
| Fungi resistance |
Excellent | |
| Oxidation resistance | Excellent | |
| Weather resistance | Excellent |
The values stated in charts are averages and are not to be construed as a warranty. Products must be tested by the end user for suitability in their applications.
