When it comes to sealing, gasketing, and weatherproofing, low density weatherstripping foam tape has emerged as a superior, cost-effective alternative to traditional polyurethane foam substrates.
Engineered for flexibility, durability, and sealing performance, these closed-cell PVC foam tapes—like those offered by Capital Tape—deliver consistent results across a wide range of industries and applications.

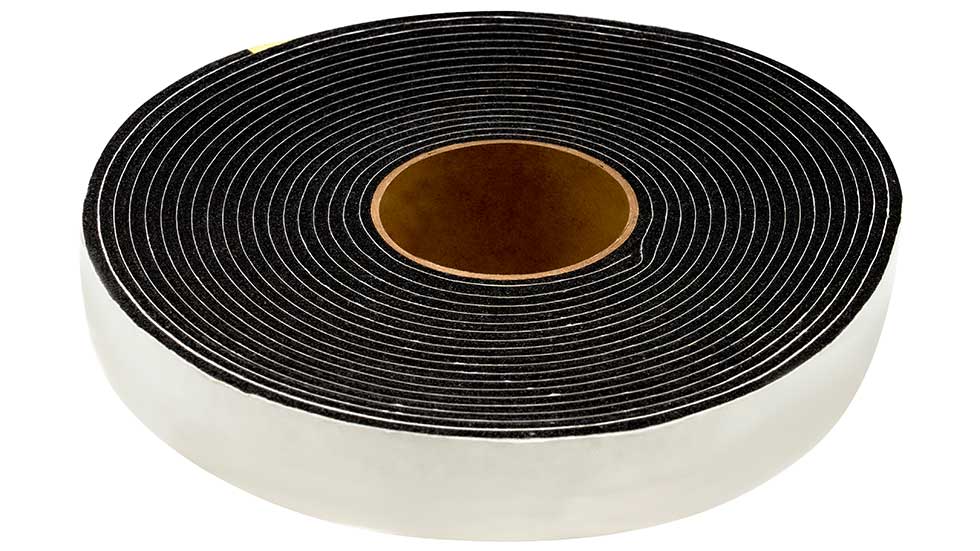

What Is Low Density Weatherstripping Foam Tape?
Low density weatherstripping foam tape is a closed-cell PVC foam tape typically ranging from 6–8 lbs. per cubic foot in density, designed for applications that require compressibility and conformability.
Unlike rigid or higher-density materials, this tape is specifically engineered to:
- Compress easily under load
- Conform to uneven or irregular surfaces
- Maintain resilience and recovery over time
Its single-sided adhesive backing allows for fast, clean installation—eliminating the need for messy adhesives or mechanical fastening.
Why It Outperforms Polyurethane Foam Substrates
Traditional polyurethane foam has long been used in sealing and cushioning applications, but low density PVC foam tape offers several key advantages:
1. Superior Sealing Performance
One of the most important benefits is its ability to create a complete environmental seal. When compressed by 30% or more, low density weatherstripping foam tape:
- Blocks air infiltration
- Prevents water and moisture intrusion
- Eliminates light leakage
- Stops dust and contaminants
This level of sealing performance is critical in both industrial and residential applications.
2. Enhanced Compressibility and Conformability
Low density PVC foam is engineered to compress with minimal force—often as low as 1.0–2.0 psi at 25% compression, depending on the product.
This allows the tape to:
- Fill gaps on uneven surfaces
- Seal tight radius curves
- Adapt to surface movement without losing integrity
Polyurethane foam, by comparison, often lacks this level of consistent compressibility and recovery.
3. Long-Term Durability and Resistance
PVC foam tapes provide built-in resistance to:
- UV exposure
- Chemicals, acids, and solvents
- Fungi, oxidation, and weathering
- Fire (many formulations are self-extinguishing)
These properties make them more durable in harsh environments than many polyurethane foam alternatives.
4. Lower Compression Set = Better Longevity
Compression set measures how well a material returns to its original thickness after being compressed. Low density weatherstripping foam tapes often feature compression set values as low as 4–19%, meaning they retain their sealing ability over time.
This translates to:
- Longer service life
- Reduced maintenance
- More reliable sealing performance
5. Cost-Effective and Easy to Install
Because it combines adhesive + gasket material in one, this tape:
- Reduces labor costs
- Simplifies installation
- Minimizes material waste
Capital Tape specifically highlights these products as a cost-effective substitute for polyurethane foam substrates in gasket and sealing applications.
Key Applications of Low Density Weatherstripping Foam Tape Across Industries
Low density weatherstripping foam tape is incredibly versatile, serving multiple industries where sealing, cushioning, and vibration control are critical.
Construction & Building Envelope
- Window glazing and sealing
- Door weatherstripping
- Log home sealing systems
- Storefront and façade sealing
These applications benefit from the tape’s ability to conform to irregular substrates and maintain a weather-tight seal.
Automotive & Transportation
Automotive-grade options (like V810 and CTA710) are designed for:
- Vehicle body sealing
- HVAC system sealing
- Interior noise and vibration control
These tapes meet strict OEM standards and perform under extreme temperatures and conditions.
Glass & Glazing Systems
- Structural and residential glazing
- Spacer and gasket systems
- Curtain wall assemblies
The tape acts as both a cushion and seal, improving durability and performance.
HVAC & Industrial Equipment
- Air handling unit sealing
- Panel gasketing
- Equipment enclosure sealing
Its resistance to moisture and chemicals makes it ideal for demanding industrial environments.
Acoustical & Vibration Control
Low density foam tapes help:
- Reduce sound transmission
- Absorb vibration
- Improve overall system performance
Certain formulations are specifically designed for acoustical applications.
Bath, Shower, and Specialty Sealing
- Shower enclosures
- Tub sealing
- Moisture-prone environments
Closed-cell construction ensures minimal water absorption and long-term reliability.
The Power of 30% Compression
A defining feature of low density weatherstripping foam tape is its optimal sealing threshold at 30% compression. At this level:
- Cells collapse just enough to eliminate pathways for air and water
- The material maintains elastic recovery
- A consistent, long-lasting seal is achieved
This balance between compressibility and resilience is what sets it apart from less engineered foam materials.
Low density weatherstripping foam tape represents a modern evolution in sealing technology. With its ability to compress, conform, and fully seal against environmental elements, it delivers performance that traditional polyurethane foam substrates often cannot match.
From construction and automotive to glazing and industrial applications, this versatile material provides:
- Reliable sealing at 30% compression
- Superior durability and resistance
- Easier installation and lower total cost
For engineers, contractors, and manufacturers seeking a dependable gasket and sealing solution, low density weatherstripping foam tape is not just an alternative—it’s often the better choice.
